Sun Kneader Model SQN & SQNV
SUN KNEADER Model SQN & SQNV
Semi-spherical design for natural flow, gently agitating even delicate products without damage

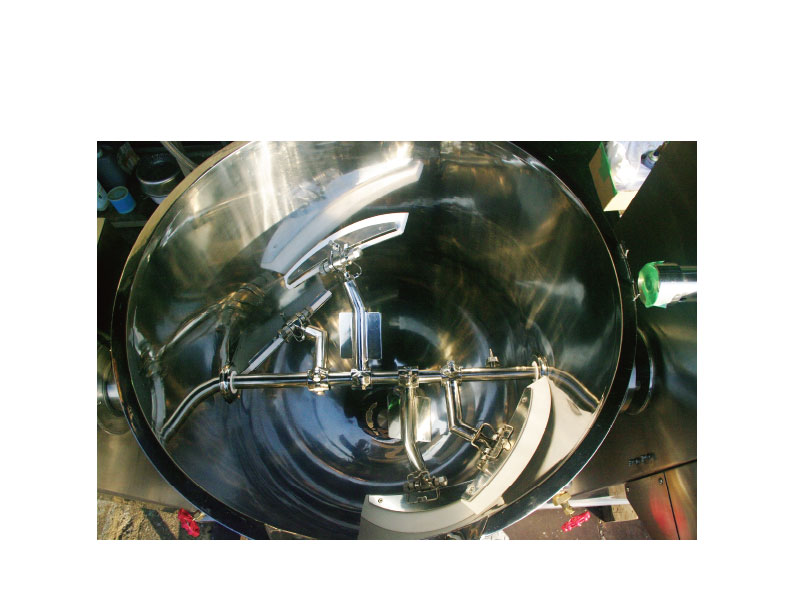

SUN KNEADER’s mixing blade
Feature
The natural flow of the food product in the hemispherical kettle and hand-turning effect from the original mixing blades brings effective mixing solutions. In particular this combination allows gentle mixing of high viscosity product and delicate food product.
Specifications
| Model | Kettle volume (L) |
Max. charging weight (kg) |
Mixing motor (kW) |
Tilting motor (kW) |
Diameter of steam piping (mm) |
Steam consumption (kg/H) |
Dimensions (mm) | ||
|---|---|---|---|---|---|---|---|---|---|
| Width | Length | Height | |||||||
| SQN(V)-300 | 300 | 180 | 1.5 | 0.4 | 34.0 | 120 | 2,300 | 1,480 | 2,500 |
| SQN(V)-400 | 400 | 240 | 160 | 2,750 | 1,600 | 2,600 | |||
| SQN(V)-500 | 500 | 300 | 2.2 | 42.7 | 170 | 2,520 | 1,630 | 2,700 | |
| SQN(V)-600 | 600 | 360 | 200 | 2,570 | 1,730 | 2,850 | |||
| SQN(V)-800 | 800 | 480 | 3.7 | 0.75 | 250 | 2,700 | 1,850 | 3,000 | |
※We manufacture machines with kettle volume in the range of 60L～3,000L.
※Options: Pouring spout, self-weighing system, product discharge valve, cooling system, timer, semi-automated cooking, automated cooking.
※We manufacture vacuum type and pressure and vacuum type as well.
※Max charging weight might change according to the product item
Standard features
Temperature control (On/Off Solenoid valve)
Safety grating
Options
Self-weighing system
Bearings sterilizing system
by steam flushing
Product discharge valve
(Foot operated tank valve)
Product discharge valve
(Auto cylinder valve)
